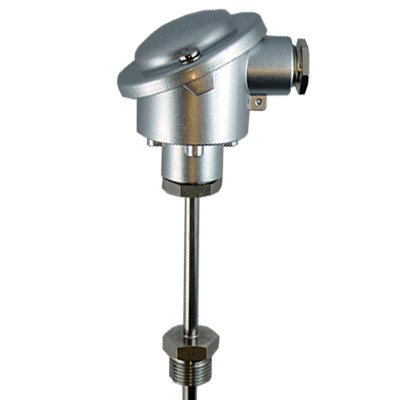

Flue gas temperature sensor with passive output and neck tube
Application
Screw-in temperature sensor for recording relatively high temperatures in gaseous or liquid media, e.g. for exhaust air and flue gas temperature measurement with exchangeable measuring insert and neck tube.
Technical Data
| Measuring range: | -35...+600°C (optional -100...+750°C) |
|---|---|
| Sensor: | see table below |
| Accuracy class: | Class B |
| Circuit type: | 2- wire connection (4- wire connection optional) |
| Measuring current: | ca. 1mA |
| Process connection: | Screw-in thread G1/2 |
| Protection tube material: | Stainless steel 1.4571 |
| Protection tube dimensions: | Ø = 9mm |
| Neck tube length: | 120mm (optional other lengths) |
| Connection head: | Form B, aluminum, gray color |
| Mechanical stress: | see standard values DIN 43763 form B and C |
| Insulation resistance: | >/= 100MOhm, at 20°C (500 VDC) |
| Protection type: | IP54 (EN 60529), optional IP65 |
| Protection class: | III (EN 60730) |
